| CENTRA - Custom Sleepout Designs - under 30m² non-consentable |
 |
The CENTRA makes a strong modern statement with its full height joinery and integrated
deck.
Its specification allows this style to be habitable under the Building Code and so ideal for teen sleepout or study, additional bedroom, home office, games room or work room.
Being under 30m² they may be built without Building Consent subject to conditions.
Below are four typical sizes, but any practical custom size may be had. |
|
|
 |
| Specification as priced |
| Foundation: |
|
Piles - not scheduled |
| Floor: |
|
Joists and Particleboard |
| Frame: |
|
Timber H1.2 SG8 |
| Roof: |
|
Colorsteel Iron |
| Cladding: |
|
Shadowclad Plywood |
| Joinery: |
|
Aluminium Single glazed |
| Insulation: |
|
F/glass Batts walls and roof |
| Lining: |
|
Plasterboard |
|
|
|
|
|
 |

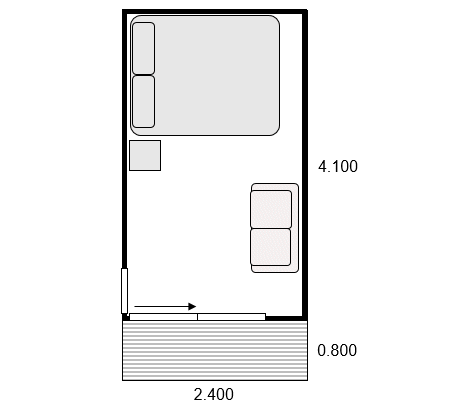

| Model: CN4124 |
| Width: |
Depth: |
Footprint: |
Floor Area: |
| 4.1m |
2.4m |
9.84m² |
8.80m² |
| Plan Costs: |
|
|
Design: |
Manfg: |
|
|
from:
|
$700 |
$700 |
|
|
|
| Prices include GST. See notes below for full details |
|
 |
| Model: CN5430 |
| Width: |
Depth: |
Footprint: |
Floor Area: |
| 5.4m |
3.0m |
16.2m² |
14.56m² |
| Plan Costs: |
|
|
Design: |
Manfg: |
|
|
from:
|
$2,200 |
$1,200 |
|
|
|
| Prices include GST. See notes below for full details |
|
 |
| Model: CN6036 |
| Width: |
Depth: |
Footprint: |
Floor Area: |
| 6.0m |
3.6m |
21.6m² |
19.72m² |
| Plan Costs: |
|
|
Design: |
Manfg: |
|
|
from:
|
$2,400 |
$1,300 |
|
|
|
| Prices include GST. See notes below for full details |
|
 |
| Model: CN7242 |
| Width: |
Depth: |
Footprint: |
Floor Area: |
| 7.2m |
4.2m |
30.24m² |
28.00m² |
| Plan Costs: |
|
|
Design: |
Manfg: |
|
|
from:
|
$2,600 |
$1,400 |
|
|
|
| Prices include GST. See notes below for full details |
|
Request a quote
