MicroHOUSE houses are the most economic tiny homes available.
They are fully compliant dwellings with bedrooms, bathrooms and kitchens.
Their timber frame design is ideal for DIY Owner-Build construction.
Plans below can be modified to your requirements for Building Design, Building Consent, Manufacturing and DIY Assembly Plans.
Choose a Floor Plan closest to your requirements
Choose options on Quote form below
- and SmarpLANZ will provide a quotation for the personalised Plans your want.
Standard Style - the standard style is Pent
Zen.

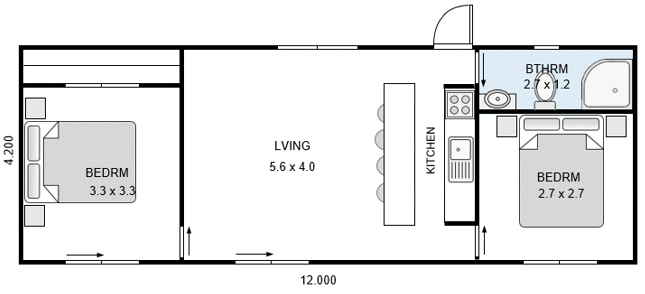

MicroHOUSE MHZ12042
12.0m x 4.2m - 50m² shown with Iron Cladding
MicroHOUSE MHZ10842
10.8m x 4.2m - 45m² shown with Iron Cladding
MicroHOUSE MHZ9636
9.6m x 3.6m - 40m² shown with Iron Cladding
MicroHOUSE MHZ8436
8.4m x 3.6m - 30m² shown with Iron Cladding
MicroHOUSE MHZ7236
7.2m x 3.6m - 25m² shown with Iron Cladding
MicroHOUSE MHZ6036
6.0m x 3.6m - 20m² shown with Iron Cladding
MicroHOUSE MHZ8436
8.4m x 3.6m - 30m² shown with Axon Cladding
MicroHOUSE MHZ8436
8.4m x 3.6m - 30m² shown with Ply and Batten Cladding
MicroHOUSE MHZ8436
8.4m x 3.6m - 30m² shown with Plywood Cladding
MicroHOUSE MHZ8436
8.4m x 3.6m - 30m² shown with W/board / Iron Cladding
Images show the six standard sizes.
Each can be had with concrete pad or timber pile foundations.
Standard roofs are colorsteel and there are a range of cladding options.
Plans- there are six Base Floor
Plans
MH20
- 20m² 6.0m x 3.6m
MH25 -
25m² 7.2m x 3.6m
MH30 -
30m² 8.4m x 3.6m
MH35 -
35m² 9.6m x 3.6m

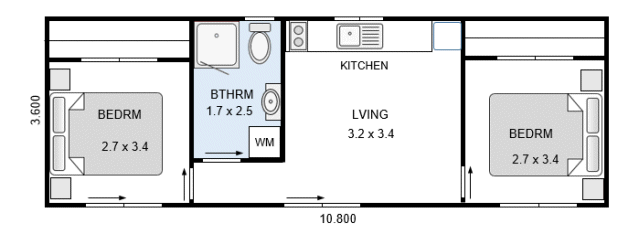

MH40 - 40m² 10.8m x 3.6m
MH45 -
45m² 10.8m x 4.2m
MH50 -
50m² 12.0m x 4.2m
These Base Floor Plans can be built as they are or personalised to client's requirements. There may be added costs for some variations.
Personalised variations include:
a) changing door and window sizes or positions
b) changing or adding interior walls (adding more rooms)
Floor sizes can be customised at added cost.
Quote - Request a MICROHOUSE
Quote
There are four Plan options:
BUILDING CONSENT - Building Plans with Site specific drawings and Specifications for BC application.
BUILDING - these are suitable for experienced builders to build from where building Consent isn't required.
MANUFACTURING - Plans including drawings for off-site manufacture and full Material Schedules.
DIY ASSEMBLY - Full step-by-step 3D instructions for Owner-Build DIY assembly.
Simply select the Base Plan closest to your requirements.
Note its layout may not resemble what you ultimately want - but personalisation or customisation will create your desired finished plan.
From the information below, we will do an online site assessment to check code structural requirements for your site and provide a quote for your requested plans.
