QuikPLANZ -  the most economic way to your Building Consent Plan package

QuikPLANZ is the quickest and most cost efficient way of getting Bach or serviced Cabin Building Consent Plans. There are five base plans ranging from 20m² to 70m².
Simply buy a plan closest to your requirements and then SmartPLANZ can quickly personalise them to suit your site and living requirements.

Styles -  there are six Standard Styles
PT10860 GB10860 NV10860
PENT  Traditional GABLE  Traditional NOVA  Traditional
00 Zen PT7242 00 Zen GB7242 00 Zen N7242 800x560
PENT  Zen GABLE  Zen NOVA  Zen

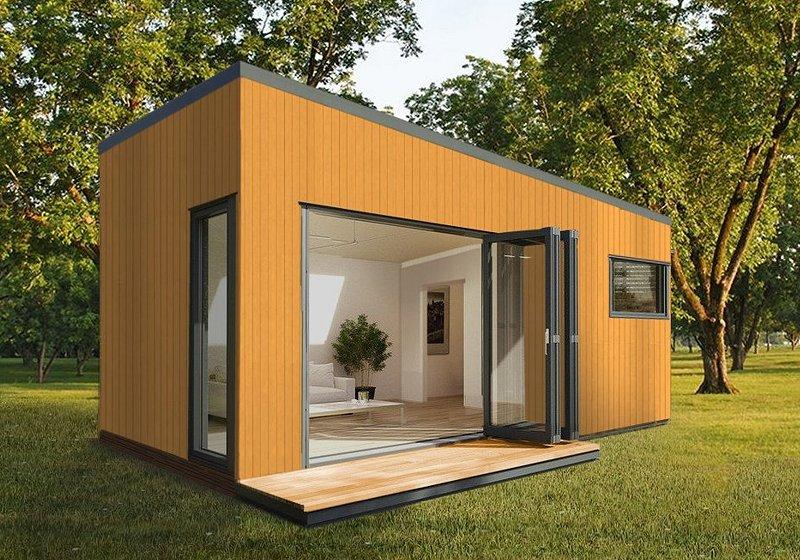

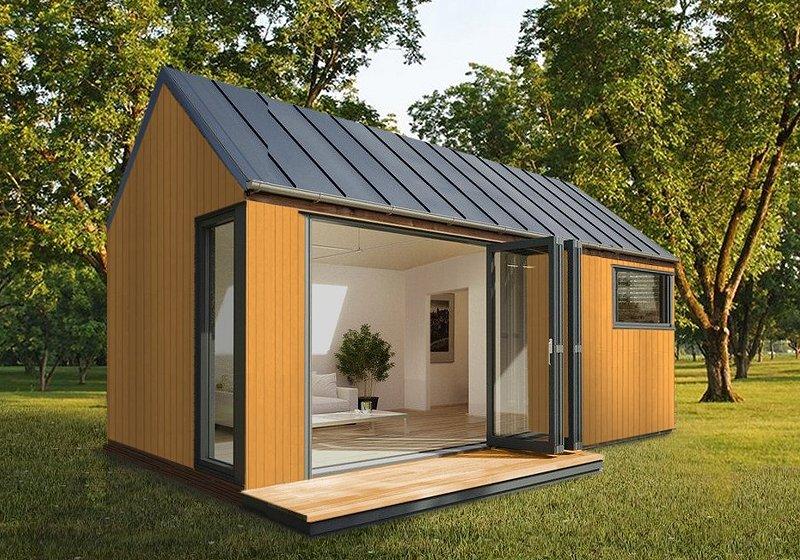

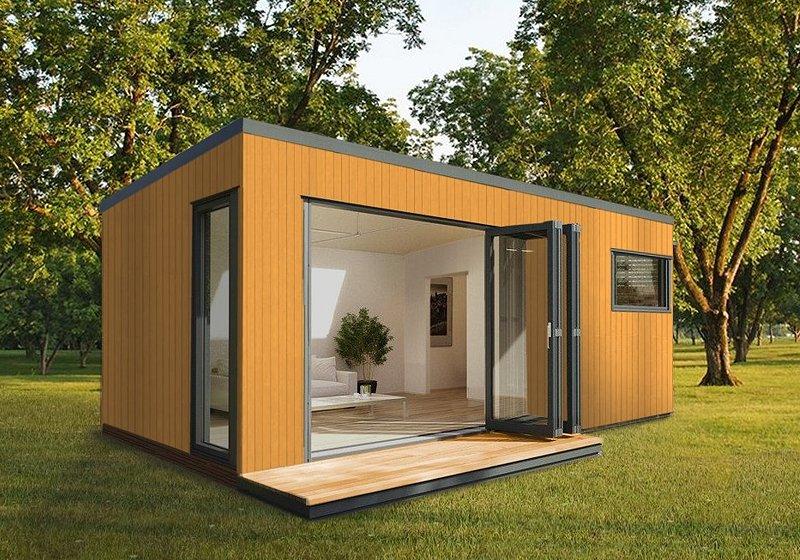

Images show the three standard designs - PENT, GABLE, NOVA as either the Traditional style (with soffits) or as the modern minimalist Zen style (without soffits). The standard images show Hardies Weatherboard cladding and are based on the 60m² basic floor plan. The Zen images show Hardies Axon panel cladding and are based on the 30m² basic floor plan.
Cladding, door and window positions and floor size can all be personalised.

Plans -  there are five Base Floor Plans
QP 20 g QP 30 g QP 40 g

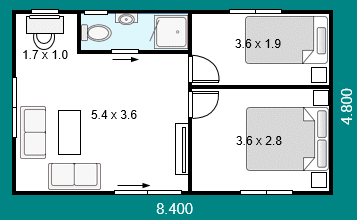

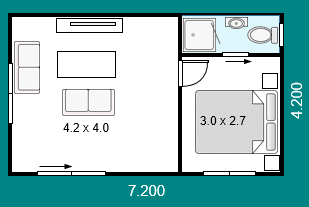

PLAN 20m²    6.0m x 3.6m - 21.60m² PLAN 30m²    7.2m x 4.2m - 30.24m² PLAN 40m²   8.4m x 4.8m - 40.32m²
QP 50 g QP 60 g

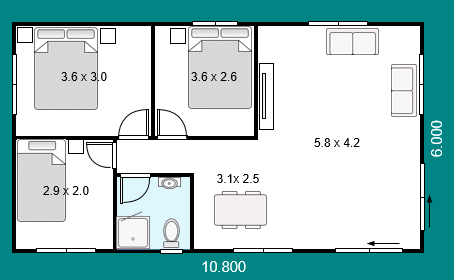

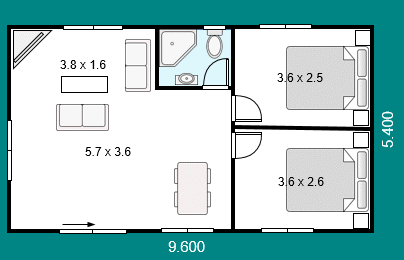

PLAN 50m²    9.6m x 5.4m - 51.84m² PLAN 60m² 10.8m x 6.0m - 64.80m²

These Basic Floor Plans can be built as they are or personalsed to your requirements. Personalised variations include:
a) changing door and window sizes or positions
b) changing or adding interior walls (adding more rooms)
c) changing or adding bathroom, kitchens or laundries.
There are small addition costs for these variations - see table below.
Should floor sizes need to be changed there is an additional customisation cost for each of the sizes - see table below.

Pricing

Each Base BC Plan is available as Pent, Gable or Nova design, Traditional or Zen style with concrete pad or timber pile foundations, Hardies Weatherboard or Axon cladding, Colorsteel roof and aluminium joinery. (See full specifications below).
These are fully consentable plans requiring only Site Plans specific to the client's building site for Building Consent application.
Note where building is to be used as a dwelling (has a kitchen) plans require an additional dwelling memorandom.
(See costs below)


Costs for Base Plans   and additional changes clients may require
20m² 30m² 40m² 50m² 60m²
6.0 x 3.6 - 21.60m² 7.2 x 4.2 - 30.24m² 8.4 x 4.8 - 40.32m² 9.6 x 5.4 - 51.84m² 10.80 x 6.0 - 64.80m²
 Standard Base BC Plans $1,500 $1,800 $2,000 $2,200 $2,500
 Site BC Plans: Typically $500 to $800
 Personalised Options
 Joinery: $50 per door/window change or addition
 Interial Walls: $50 per change to walls or added walls
 Additional Services: $50 per room
 Cladding additions
Hardies 180 W/board:   included included included included included
Hardies Axon Panel:   included included included included included
Plywood:   $100 $120 $150 $180 $200
Ply and Batten:   $150 $170 $200 $230 $250
Linea:   $100 $120 $150 $180 $200
Timber W/board:   $150 $170 $200 $230 $250
Weathertex:   $150 $170 $200 $230 $250
Palliside PVC W/board:   $200 $240 $300 $350 $400
Colorsteel Iron:   $300 $350 $400 $450 $500
 Custom Options additions
 Change Floor Size: $1,000 $1,200 $1,500 $1,800 $2,000
 Kitchen addition: $200 $200 $200 $200 $200
 Dwelling Sign-off: $600 $600 $800 $900 $1,000
Order Your BC Plans Now

Simply order the Base Plan closest to your requirements. Note its layout may not resemble what you ultimately want - personalisation or customisation will create your desired finished plan.
From the information below and prior to your payment, we will do an online site assessment to check the plans are initially suitable for your site. Once this is confirmed and your payment made, we will forward the base plans and a design form should you wish variations to be made.
We will confirm any additional personalistion or customisation costs prior to making the alterations.



YOUR DETAILS
Your Name:
Your Email:
Your Phone:
Building Site Address:
Town/District
BUILDING DETAILS
Building Use:
Base Plan:
Style:
Foundations:
Cladding:
Interior Lining:
Will you be:
Bathroom:
Laundry:
Kitchen:
Comments:

SPECIFICATIONS

go to.gif see all Bach Styles go to.gif see all Cabin Styles
