GABLE Cabins, Baches, Granny Flats
03 gb6042 800x560.jpg


.
A traditional Gable design with skillion or flat ceilings.
Suitable for one to four bedroom bach or grannyflat.

Available with nine standard cladding options
Being over 10m² these will require Building Consent.

Request a Quotation

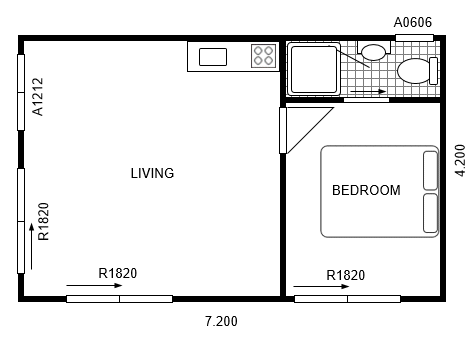

  Example Plan: GB7242
Size: 7.2m x 4.2m - 30.24m² Insulation:
Deck: not included Floor -   Polystyrene
Foundations: Pile and bearer Ceiling, Walls -  Fibreglass batts
Roof, trim: Colorsteel Lining: Plasterboard
Cladding: Hardie Weatherboard Trim: Pine preprimed
Doors: 3 - R1820 Interior doors: MDF prehung
Windows: A1212, A0606 MDF cavity slider
Kitchen: Micro Kitchenette
Bathroom Units: Shower, Vanity Toilet
GB7242


Pricing for this design:
.

Building Consent Plans: $4,200
Manufacturing Plans: $1,500
DIY Assembly Plans: $1,200

Note:
Price includes a standard site plan where information is available.
Costs may vary due to site or location requirements.

  Standard design Options
Size:
as required (generally to 80m²)
Roof Pitch:
10 to 35 degrees
Wall Height:
generally 2.4m
Foundations:
Concrete Pad, Piles and Bearers
Floor:
Particleboard, Plywood
Roof and trim:
Zincalume - corrugate or trapezoidal
Colorsteel - corrugate or trapezoidal
Cladding:
Shadowclad Plywood
Hardies Weatherboard 180
Linea
Ply and Batten
Hardiflex and batten
Pine Weatherboards
Palliside PVC Weatherboards
Doors:
as required, generally:
Sliding, French and Bifold
Windows:
as required, generally:
Fixed, Awning, Sliding, Casement
Single or Double glazed
Insulation:
as required, generally:
Fibreglass Batts or Polystyrene
Interior Lining:
Plasterboard
Plywood
MFD
Selected panelling
Trim:
Pine preprimed or clear
Units:
Kitchen as required
Bathroom or Laundry units as required
