MIAMI Portico Cabins and Sleepouts buy info
MA440


The Miami is a minimalist cabin style with unque and stylish matching portico.
Ideal for indoor-outdoor work or living space.

There are three non-consentable cabin models under 10m² and custom designed cabins to 72m² with portico to suit.

Request a Design under 10m²
Request a Design over 10m²

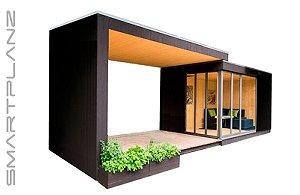

Model: MA4124-36  - as shown
Cabin Size: 4.1m x 2.4m - 9.84m²
Portico Size: 3.6m x 2.4m - 8.64m²
Floor: Particle board, joists
Roof: Colorsteel
Cladding: Shadowclad Ply
Doors: Aluminium Sliding - F2224
Aluminium Sliding - F2218
Windows: Optional
Lining: Plaster Board
PRICES
Plans Kitset
Manfg Assem Smart Builders
Lockup Shell: $700 $700 $8,206 $10,152
Lining Kit: incl incl $773 $835
Portico: incl incl $1,811 $2,376
Deck: incl incl $890 $1,135
Plans Manufacturing:
SmartPLANZ provides complete material schedules and working drawings for kitset manufacture.
Plans Assembly:
SmartPLANZ provides detailed step-by-step assembly instruction ideal for DIYers and Owner-Builders.
See full details about Plans Packages
Kitset Smart:
This price is an estimated cost of materials sourced by owner or their builder from local merchants.
Kitset Builders:

This is the estimated cost for a local supplier to provide prenailed frames and all materials.
(Note this option may not yet be available in all regions)

See full details about Kitsets

NOTE:
Prices include GST, and will vary due to location or site.

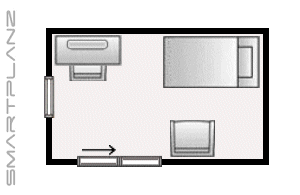

Standard Sizes under 10m²
MA3624: 3.6W x 2.4D - 8.64m²
MA3627: 3.6W x 2.7D - 9.72m²
MA4124: 4.1W x 2.4D - 9.84m²
Porticos any length up to 4.8m

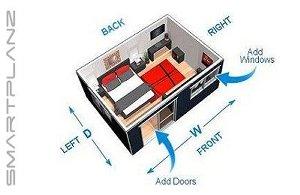

Design Options
Foundations: Pile and Bearer
Concrete Pad
Floor: Particle Board
H3 Plywood
Roof: Zincalume steel
Colorsteel
Cladding: Shadowclad Plywood
Hardiplank
Ply and Batten
Hardies Linea
Horizontal Corrugate Zincalume
Vertical Corrugate Zincalume
Horizontal Corrugate C/steel
Vertical Corrugate C/steel
Doors: Aluminium, hinged or sliding
Windows: Aluminium, fixed or awning
LINING
Insulation: U/floor Expol
Ceiling F/glass Batts
Walls F/glass batts
Lining: Plaster Board
MDF
Plywood
Trim: Pine
