MODENA - Custom Sleepouts - under 30m² non-consentable |
|
The BARNHOUSE is a trendy modern Gable style with its bold buttressed walls
at front and back.
Its specification allows this style to be habitable under the Building Code and so ideal for teen sleepout or study, additional bedroom, home office, games room or work room.
Being under 30m² they may be built without Building Consent subject to conditions.
Below are four typical sizes, but any practical custom size may be had. |
|
|
Specification as priced |
Foundation: |
|
Piles - not scheduled |
Floor: |
|
Joists and Particleboard |
Frame: |
|
Timber H1.2 SG8 |
Roof: |
|
Colorsteel Iron |
Cladding: |
|
Colorsteel Vertical Iron |
Joinery: |
|
Aluminium Single glazed |
Insulation: |
|
F/glass Batts walls and roof |
Lining: |
|
Plasterboard |
|
|
|
|
|

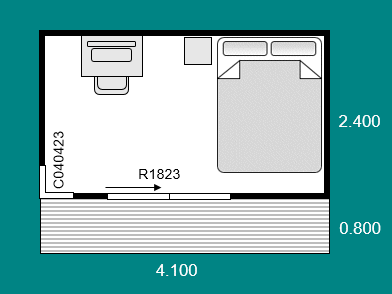

Model: MD4124 |
Width: |
Depth: |
Footprint: |
Floor Area: |
4.1m |
2.4m |
9.84m² |
8.80m² |
Plan Costs: |
|
Design: |
Manfg: |
|
from:
|
$800 |
$800 |
|
|
Prices include GST. See notes below for full details |
|
|

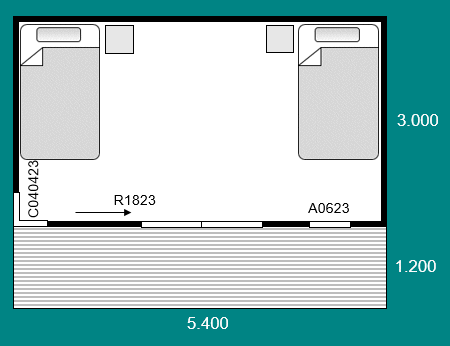

Model: MD5430 |
Width: |
Depth: |
Footprint: |
Floor Area: |
5.4m |
3.0m |
16.2m² |
14.56m² |
Plan Costs: |
|
Design: |
Manfg: |
|
from:
|
$2,200 |
$1,200 |
|
|
Prices include GST. See notes below for full details |
|
|

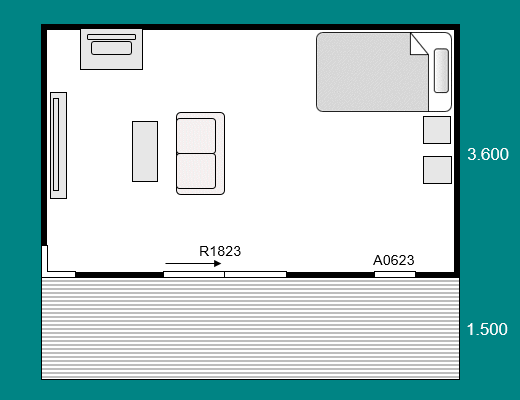

Model: MD6036 |
Width: |
Depth: |
Footprint: |
Floor Area: |
6.0m |
3.6m |
21.6m² |
19.72m² |
Plan Costs: |
|
Design: |
Manfg: |
|
from:
|
$2,400 |
$1,300 |
|
|
Prices include GST. See notes below for full details |
|
|

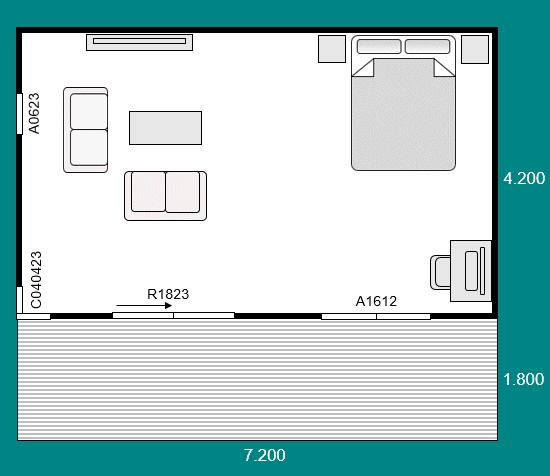

Model: MD7242 |
Width: |
Depth: |
Footprint: |
Floor Area: |
7.2m |
4.2m |
30.24m² |
28.00m² |
Plan Costs: |
|
Design: |
Manfg: |
|
from:
|
$2,600 |
$1,400 |
|
|
Prices include GST. See notes below for full details |
|
