RANCHOUSE - Serviced Cabins
07 rh7248 800x560.jpg
The Ranchouse is a traditional gable design with integrated front veranda
Features:
Roof pitch 10 to 45 degrees
Variable veranda depth
Wall heights 2.4m to 3.3m
Optional deck
Designed for Pad or Pile foundation

go to.gif Request a quotation for a custom plan

Example Design

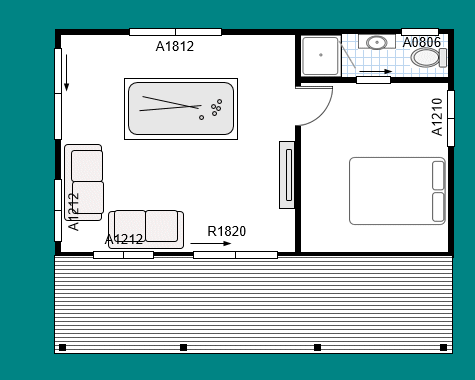

This RH8448   7.2m x 4.2m - 40m² floor plan is for a living room with bedroom and ensuite.
Ideal for sleepout, guest room, motel unit.

Plan Prices BC Mfg Assm
$4.200 $2,000 $2,000
Note: These prices are close estimates as site and location will influence final costs.
Prices include:
  A standard site Plan
  Full calculations and Specifications for Building Consent
  GST
Specifications

All kitsets are custom designed for size, cladding, joinery as well as specific requirements for the exact site and location and clients' living requirements.


Specifications  as priced
Foundations: Timber Pile
Floor: Particle Board
Roof: Colorsteel
Cladding: Shadowclad Plywood
Joinery: Double glazed Aluminium
Insulation: Fibreglass Batts
Lining: Plasterboard
Bathroom: Shower, WC, Vanity
Standard Design Options
Size:
as required
Roof Pitch:
10 to 45 degrees
Wall Height:
generally 2.4m to 3.0m
Foundations:
Concrete Pad, Piles and Bearers
Floor:
Particleboard, Plywood
Roof and trim:
Zincalume - corrugate or trapezoidal
Colorsteel - corrugate or trapezoidal
Cladding:
Shadowclad Plywood
Hardies Weatherboard 180
Linea
Ply and Batten
Hardiflex and batten
Pine Weatherboards
Palliside PVC Weatherboards
Doors:
as required, generally:
Sliding, French and Bifold
Windows:
as required, generally:
Fixed, Awning, Sliding, Casement
Single or Double glazed
Insulation:
as required, generally:
Fibreglass Batts or Polystyrene
Interior Lining:
Plasterboard
Plywood
MFD
Selected panelling
Trim:
Pine preprimed or clear
Units:
Bathroom units as required
go to.gif see all Seviced Cabin Styles go to.gif see Loft Cabins go to.gif see Bach Styles
