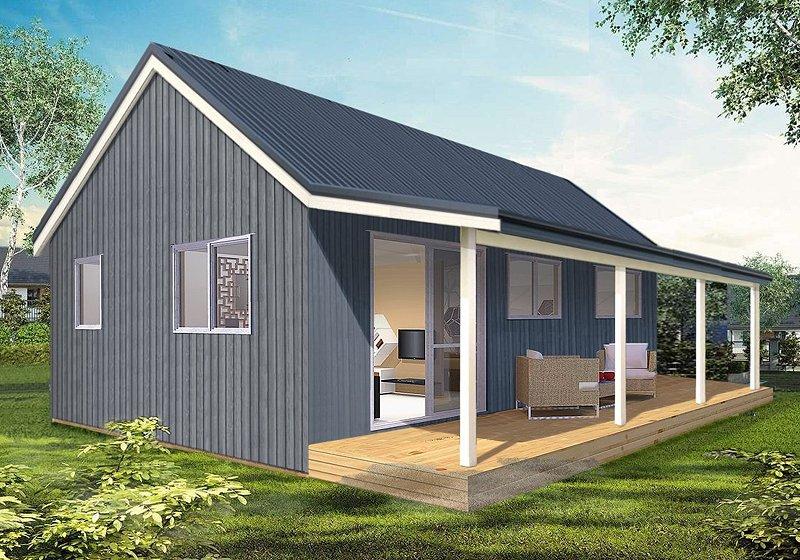

The RANCHOUSE is a traditional gable style with integrated veranda.
Size and floor layouts are designed to client's requirements, with a wide range of cladding options and joinery sizes to suit.
Our plan packages include full Building Consent, Manufacturing or Kitseting drawings and DIY/Owner-build Assembly Instructions.
Example Design

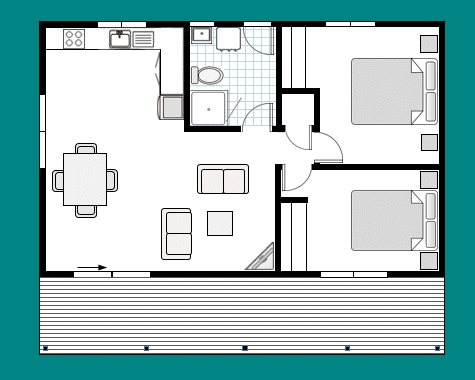

This RH9660 - 9.6 x 6.0m  58m² - floor plan is for a two bedroom granny flat or bach.

Plan Prices BC Mfg Assm
$5,800 $2,400 $2,400
Note: These prices are close estimates as site and location will influence final costs.
Prices include:
  A standard site Plan
  Full calculations and Specifications for Building Consent
  GST
Specifications

All kitsets are custom designed for size, cladding, joinery as well as specific requirements for the exact site and location and clients' living requirements.

go to.gif Request a quotation for a custom plan




Specifications  as priced
Foundations: Timber Pile
Floor: Particle Board
Roof: Colorsteel
Cladding: Ply and Batten
Joinery: Double glazed Aluminium
Insulation: Fibreglass Batts
Lining: Plasterboard
Kitchen: Basic Kitchen
Bathroom: Shower, WC, Vanity
Standard Design Options
Size:
as required
Roof Pitch:
10 to 45 degrees
Wall Height:
generally 2.4m to 3.0m
Foundations:
Concrete Pad, Piles and Bearers
Floor:
Particleboard, Plywood
Roof and trim:
Zincalume - corrugate or trapezoidal
Colorsteel - corrugate or trapezoidal
Cladding:
Shadowclad Plywood
Hardies Weatherboard 180
Linea
Ply and Batten
Hardiflex and batten
Pine Weatherboards
Palliside PVC Weatherboards
Doors:
as required, generally:
Sliding, French and Bifold
Windows:
as required, generally:
Fixed, Awning, Sliding, Casement
Single or Double glazed
Insulation:
as required, generally:
Fibreglass Batts or Polystyrene
Interior Lining:
Plasterboard
Plywood
MFD
Selected panelling
Trim:
Pine preprimed or clear
Units:
Kitchen as required
Bathroom and Laundry units as required
