PENT Sleepouts - under 30m²   non-serviced
Arrow L
Arrow R
The PENT is a traditional mono-pitched roof style.
Its specification allows this style to be habitable under the Building Code and so ideal for teen sleepout or study, additional bedroom, home office, games room or work room.
Being under 30m² they may be built without Building Consent subject to conditions.
Below are four typical sizes, but any practical custom size may be had.
Design Options:

go to.gif  Request a quote

Concrete pad or pile and bearer foundation
Roof pitch 3 to 30 degrees
Wall heights from 2.2m to 3.0m
Most standard cladding and joinery options
Optional decks or verandas
Elv Pent
Specification as priced
Foundation: Piles - not scheduled
Floor:   Joists and Particleboard
Frame:   Timber H1.2 SG8
Roof: Colorsteel Iron
Cladding: Hardies Weatherboard
Joinery: Aluminium Single glazed
Insulation: F/glass Batts walls and roof
 Lining:   Plasterboard

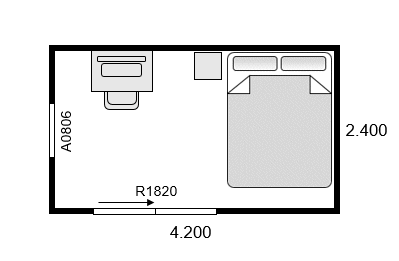

Plan PT4124
Model:  PT4124
Width: Depth: Footprint: Floor Area:
4.1m 2.4m 9.84m² 8.80m²
Plan Costs:
Design: Manfg: Assem:
incl $500 $500
Material Prices:
Shell: Lining:
Prices include GST. See notes below for full details

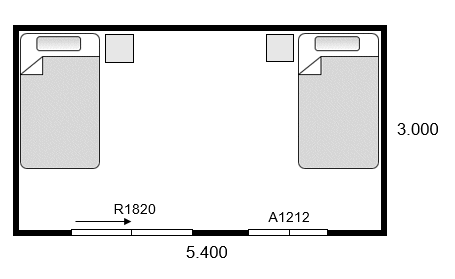

Plan PT5430
Model:  PT5430
Width: Depth: Footprint: Floor Area:
5.4m 3.0m 16.2m² 14.56m²
Plan Costs:
Design: Manfg: Assem:
$1,250 $1,200 $1.000
Material Prices:
Shell: Lining:
Prices include GST. See notes below for full details

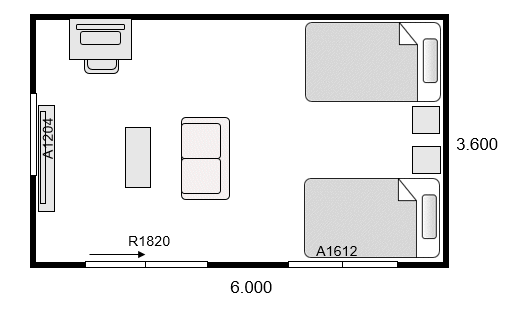

Plan PT6036
Model:  PT6036
Width: Depth: Footprint: Floor Area:
6.0m 3.6m 21.6m² 19.72m²
Plan Costs:
Design: Manfg: Assem:
$1,650 $1,200 $1,200
Material Prices:
Shell: Lining:
Prices include GST. See notes below for full details

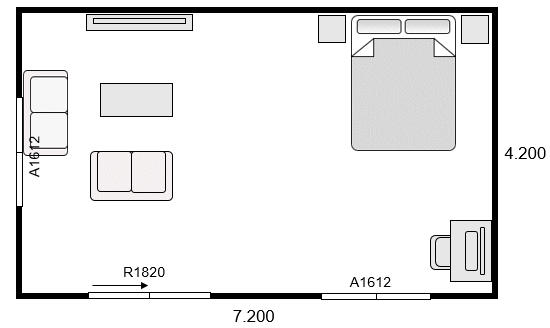

Plan PT7242
Model:  PT7242
Width: Depth: Footprint: Floor Area:
7.2m 4.2m 30.24m² 28.00m²
Plan Costs:
Design: Manfg: Assem:
$1,750 $1,200 $1,200
Material Prices:
Shell: Lining:
Prices include GST. See notes below for full details
NOTES
Size: Footprint - is the exterior dimensions of building
Floor Area - is the available interior floor space - excludes wall thickness
Plan Costs: Design - includes typical A3 builder's plans. Does not include site plan or other typical Building Consent information.
Manufacturing - includes prenail and other main frame drawings and full Material Schedules for complete building.
Assembly - includes 3D-type assembly instructions for non-licenced Owner-Builders or DIYers .
Material Prices: Shell - includes full lockup shell materials excluding pad or pile foundations
Lining - includes insulation, interior linings, trim and any interior doors.
