PENT Cabins, Baches,Granny Flats
06 pt6036 800x560.jpg


.

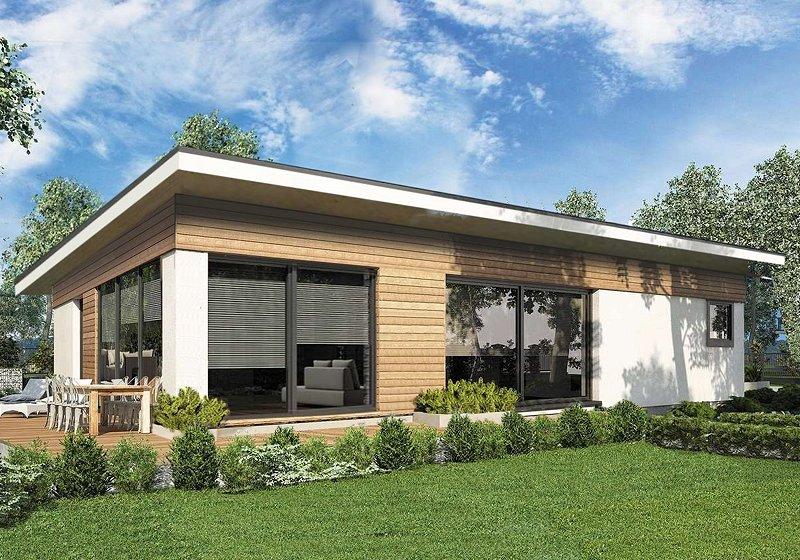

This mono-pitched roof design is ideal for the budget-conscious builder or owner wanting the most economic cabin, bach or grannyflat.
Ease of construction makes the Pent ideal for Owner-Builder projects.
Being over 10m² these will require Building Consent.

Request a Quotation

  Example Plan: PT6036
Size: 6.0m x 3.6m - 21.60m² Insulation:
Deck: not included Floor -   Polystyrene
Foundations: Pile and bearer Ceiling, Walls -  Fibreglass batts
Roof, trim: Colorsteel Lining: Plasterboard
Cladding: Shadowclad Plywood Trim: Pine preprimed
Doors: 1- R1820 Interior doors: MDF cavity slider
Windows: 2 - A1612, A0606 Bathroom Units: Shower, Vanity Toilet
PT6036


Pricing for this design:
.

Building Consent Plans: $3,200
Manufacturing Plans: $1,200
DIY Assembly Plans: $1,200

Note:
Price includes a standard site plan where information is available.
Costs may vary due to site or location requirements.

  Standard design Options
Size:
as required (generally to 80m²)
Roof Pitch:
3 to 30 degrees
Wall Height:
generally 2.4m
Foundations:
Concrete Pad, Piles and Bearers
Floor:
Particleboard, Plywood
Roof and trim:
Zincalume - corrugate or trapezoidal
Colorsteel - corrugate or trapezoidal
Cladding:
Shadowclad Plywood
Hardies Weatherboard 180
Linea
Ply and Batten
Hardiflex and batten
Pine Weatherboards
Palliside PVC Weatherboards
Doors:
as required, generally:
Sliding, French and Bifold
Windows:
as required, generally:
Fixed, Awning, Sliding, Casement
Single or Double glazed
Insulation:
as required, generally:
Fibreglass Batts or Polystyrene
Interior Lining:
Plasterboard
Plywood
MFD
Selected panelling
Trim:
Pine preprimed or clear
Units:
Kitchen as required
Bathroom or Laundry units as required
