AVANTI  Baches, Granny Flats
AV6096



The Avanti is a bold architectural statement with its unique buttressed wall design.
With integrated deck, the Avanti will enhance any home or holiday site.
Being over 10m² these will require Building Consent.

Request a Quotation

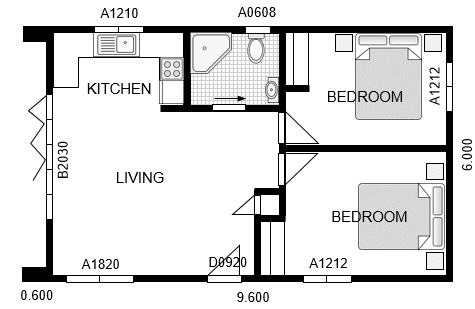

  Example Plan: AV6096
Size: 6.0m x 9.6m - 57.6m² Insulation:
Foundations: Concrete Slab Floor -   Polystyrene
Roof, trim: Colorsteel Ceiling, Walls -  Fibreglass batts
Cladding: Redwood shiplap to front Lining: Plasterboard
Vertical C/steel, sides, back Trim: Pine preprimed
Doors Bifold B3620, Single S0920 Interior doors MDF prehung
Windows: A1820, 2- A1212, A1219 MDF cavity slider
A0608
Bathroom Units: Shower, Vanity Toilet

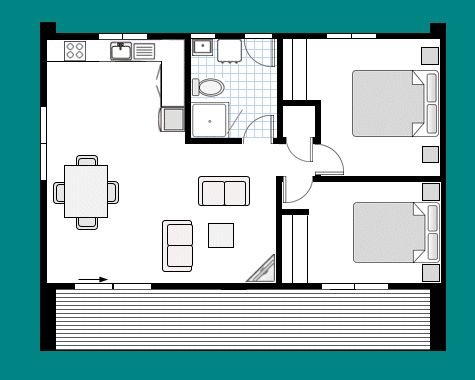

AV6096-2


Pricing for this design:
.

Building Consent Plans: $5,600
Manufacturing Plans: $2,400
Assembly Plans: $2,400

Note:
Price includes a standard site plan where information is available.
Costs may vary due to site or location requirements.

  Standard design Options
Size:
as required (generally to 100m²)
Roof Pitch:
4 to 30 degrees
Wall Height:
generally 2.4m
Foundations:
Conrete Pad, Piles and Bearers
Floor:
Particleboard, Plywood
Roof and trim:
Zincalume - trapezoidal
Colorsteel - trapezoidal
Cladding:
Shadowclad Plywood
Hardies Weatherboard 180
Linea
Trapezoidal C/steel or Zincalume
Ply and Batten
Hardiflex and batten
Pine Weatherboards
Palliside PVC Weatherboards
Doors:
as required, generally:
Sliding, French and Bifold
Windows:
as required, generally:
Fixed, Awning, Sliding, Casement
Single or Double glazed
Insulation:
as required, generally:
Fibreglass Batts or Polystyrene
Interior Lining:
Plasterboard
Plywood
MFD
Selected panelling
Trim:
Pine preprimed or clear
Units:
Kitchen as required
Bathroom and Laundry units as required
